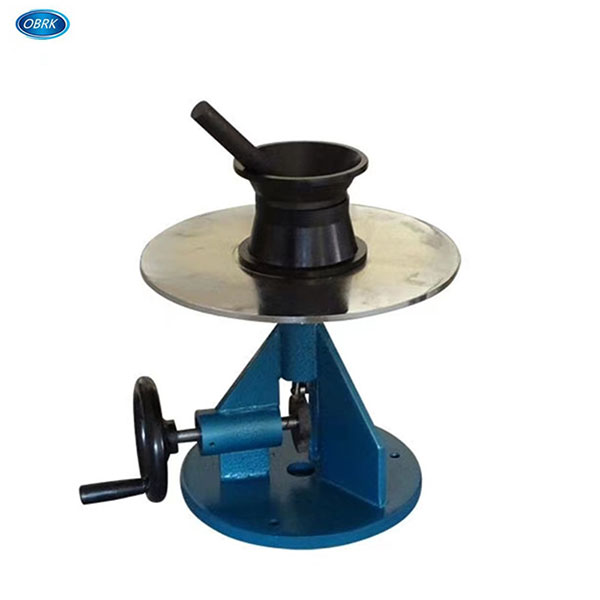

Manual Cement Flow Table Apparatus

Category :Cement & Mortar Test Apparatus
Name :
Tel :
Email :
Content :


Product Description:

It is use for cement mortar mixture fluid test. A specimen contained in a cone mould is placed on a metal surface which is then raised and dropped from a known height after releasing the specimen from the mould.

Technical parameter for Standard: EN 459-2, EN 1015-3

Diameter of Table 300 mm steel
Height of Drop  10 mm
Flow Table Weight 4.5 kg
Brass Flow Mould Top Ø70, Base Ø100, 60 mm (H)


Technical parameters for Standard:ASTM C230

Diameter of Table 255mm Steel
Height of Drop  12.7 mm
Flow Table Weight 4.08 kg
Brass Flow Mould Top Ø70,Base Ø100, 50 mm (H)
Tamper 13 x 25 x 150 mm
