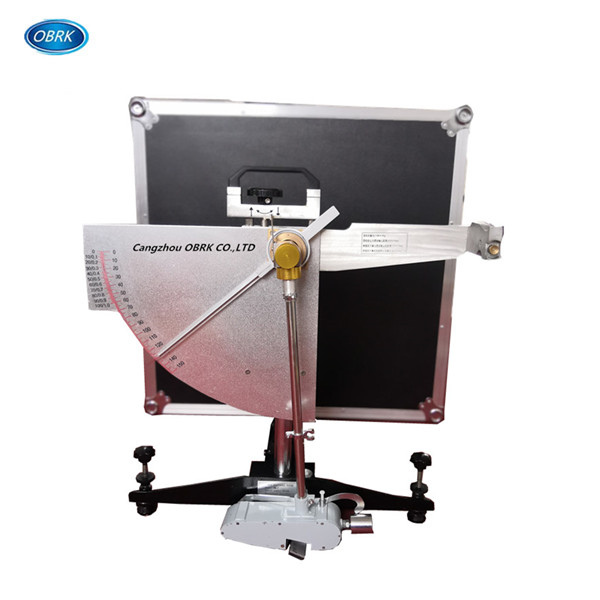

Skid Resistance Test Apparatus

Category :Soil Test Apparatus
Name :
Tel :
Email :
Content :


Product Description:

Standard :EN 13036-4, EN 1097-8, BS 7976, ASTM E303

The apparatus is suitable for both site and laboratory applications to perform two types of tests.

- For measuring pavement (road asphalt) surface frictional and skid resistance properties

- For polished stone value tests on aggregates (curved specimens) from accelerated polishing tests.

The skid tester is also suitable to perform tests on :

- Natural stones conforming to EN 1341, 1342

- Concrete block pavers conforming to EN 1338

The tester measures the energy loss when a rubber slider edge is propelled over the surface under test.

The slider lifting device is incorporated in the pendulum base assuring accurate adjustment operations.

The height adjusting system is simple and reliable.

The pointer made from light alloy, has extremely low frictions granting high precision result.

The release mechanism of the pendulum arm has an original solution reducing the friction to minimum for better accuracy.

Technical Specifications:

Model Number

Parts Description

Quantity

OK-J01 Mounted Rubber Slide

Hardness:55±5 IRHD

size: 31.75mm×25.4mm×6.35mm

2PCS

OK-J02 Mounted Rubber Slider

Hardness:55±5 IRHD

size: 76mm×25.4mm×6.35mm

2PCS

OK-J03 Mounted Rubber Slider

Hardness:96±2 IRHD size:31.75mm×25.4mm×6.35mm

Can choice

OK-J04 Mounted Rubber Slider

Hardness:96±2 IRHD,

size:76mm×25.4mm×6.35mm

Can choice

OK-J05 Shower


1PC

OK-J06 Brush


1PC

OK-J07 Wrench


1PC

OK-J08 Ruler


1PC
