Standard Aggregate Crushing Value Apparatus

Product Description:

STANDARD: BS 812-110, 111

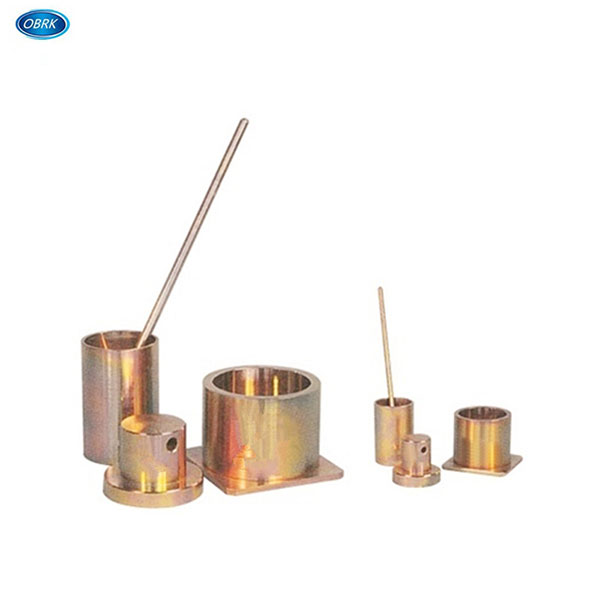

The aggregate crushing value provides a relative measure of the resistance of an aggregate to crushing under a gradually applied compressive load. Supplied complete with cylinder, plunger, base plate, tamping rod, and measure.

Technical Parameters:

Diameter 150mm Aggregate Crushing Value Apparatus comprising 150 mm nominal diameter steel cylinder, plunger and base plate.

Weight: 16.6 kg

Metal Measure 115 mm diameter x 180 mm deep.

Weight: 870 g

Tamping Rod 16 mm diameter x 600 mm long with rounded end.

Diameter 75mm Aggregate Crushing Value Apparatus comprising 75 mm nominal diameter steel cylinder, plunger and base plate.

Weight: 3.5 kg

Metal Measure 57 mm diameter x 90 mm deep.

Tamping Rod 8 mm diameter x 300 mm long with rounded end.

Weight: 350 g
