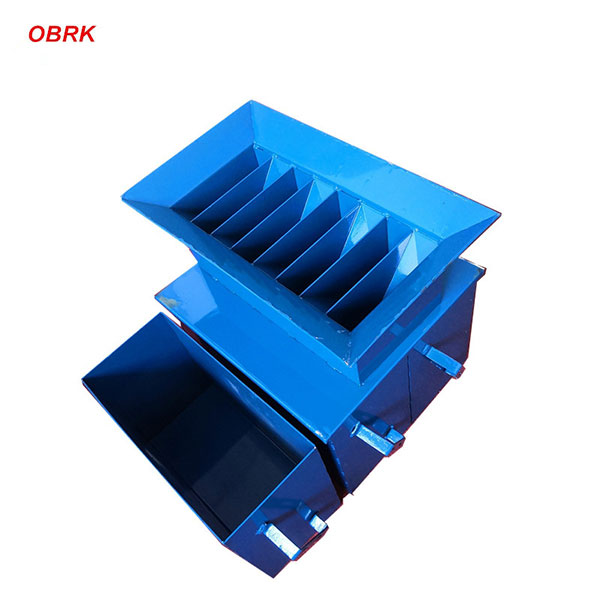

Riffle Box

Category :Aggregate & Rock
Name :
Tel :
Email :
Content :


Product Description:

Standard: EN 932-1, ASTM C136, BS 812, AASHTO T27 / T87

Used for the rapid preparation of dry material such as cement, gravel, sand, soil etc. Material poured into the hopper is divided into two equal portions by a series of slot that discharge the material alternately in opposite direction into separate pans.

Technical Specifications:

Model Sloth Width Sloth No. Receiving container Dimension (LxWxH) Weight
NO.1¼ inch / 6.3 mm123 nos.193 x 133 x 142 mm1.5 kg
NO.23/8 inch / 9.5 mm123 nos.265 x 107 x 175 mm3 kg
NO.3½ inch / 12.7 mm123 nos.266 x 161 x 176 mm3 kg
NO.4¾ inch / 19.0 mm123 nos.400 x 214 x 263 mm7 kg
NO.51 inch / 25.4 mm123 nos.340 x 243 x 295 mm7 kg
NO.61½ inch / 38.0 mm83 nos.483 x 286 x 390 mm15 kg
NO.72 inch / 50.8 mm83 nos.573 x 286 x 390 mm18 kg
NO.82½ inch / 63.5 mm83 nos.653 x 380 x 430 mm20 kg
