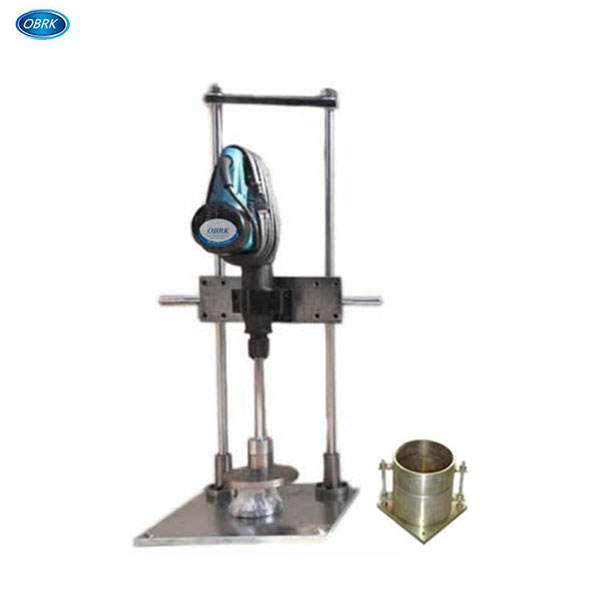

Soil Compaction Test Apparatus Electric Vibrating Compaction Hammer

Category :Soil Test Apparatus
Name :
Tel :
Email :
Content :


Product Description:

Usage: this apparatus is used for preparing the test specimens of bituminous mixtures and soils.

Technical Parameters:

Standard EN 13286-4 (Annex A),BS 1377:4/ BS 1924:2
Voltage 220V
Power 1200W
Hammer weight about 6.3Kg
Tamping Foot size Dia. 100 mm,Dia.145 mm,
   95 x 95 mm,146 x 146 mm
Steel Shank  250mm

The Vibratory Compactor Set is supplied complete with:

Vibrating Hammer

Supporting Frame

Shank, 250 mm, long 0.6Kg

Small Tamping Foot, 100 mm dia. 1.2Kg

Large Tamping Foot, 145 mm dia. 2.3Kg

Tamping Foot :95 x 95 mm 1.7Kg

Tamping Foot :146 x 146 mm 3.5Kg
