Update Asphalt Planetary Mixer 20 Litres

Category :Bitumen & Asphalt Testing
Name :
Tel :
Email :
Content :


Product Description:

Standard:ASTM D1559, EN 1269/35, BS 598-107

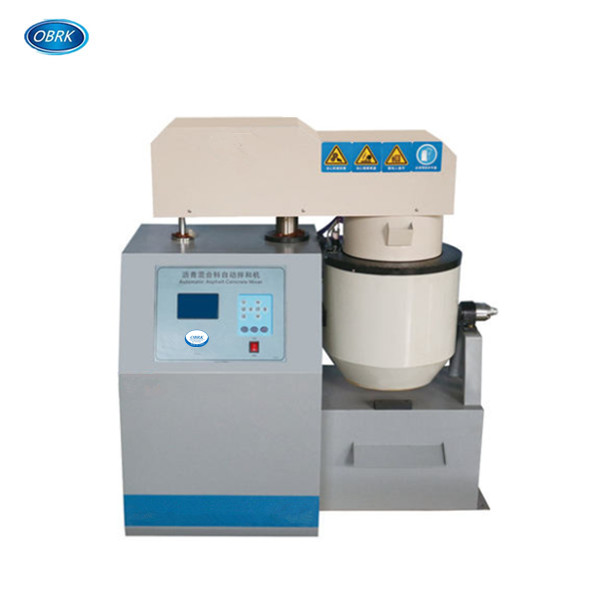

The mixer has been designed for bituminous homogenous mixing, consists essentially in a horizontal tilting thermostatic drum. Tilting drum is 130° angles. The mixing chamber is heated by dielectric chamber with diathermic thermostatic control. The unit comes with PID temperature control unit with digital display. This large capacity heavy duty mixer designed to mix bituminous sample for tensile splitting test, compaction test, marshall and other test where uniformity is required. The mixer mixed homogeneous, uniform efficient fast mixture action. They are of easy and practical utilization suite for laboratory purpose. This mixer featuring 20 litres capacity. The bituminous mixture can be easily discharge by the total turnover of the mixing chamber.

The operated panel is Chinese and English toggle.

Technical Specifications:

Model number

BH-20A

Mixing Capacity

10L

Drum Capacity

20L

Planetary Speed

45 ±5 RPM

Spindle Speed

75 ±5 RPM

Temperature Range

Ambient - 250°C (Adjustable)

Temperature Accuracy

±3°C

Setting Timer

1 - 999 seconds

Power

3600W

Votalge

220V

Dimesion

130x65x152CM

Weight

200KG
