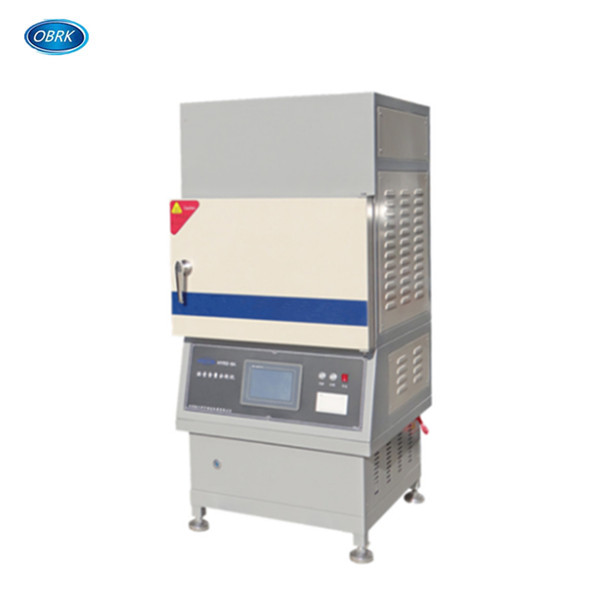

(Ignition Method) Asphalt Binder Analyser

Product Description:

STANDARD: EN 12697-39. ASTM D6307, AASHTO TP53

The Asphalt Content/Binder ignition oven with internal automatic balance is an environmentally-friendly and costeffective method for the accurate determination of asphalt content.  It is made of three parts: combustion device (furnace), weight measurement (electronic balance), test control and data processing (microcontroller unit). At the bottom of the chamber there are four dia. 30mm tube ports. They are for four dia.16mm cast synthetic mica bars attached under a cordierite-mullite tray to get through the chamber, so that the tray can connect with the balance which could monitor the reduction in weight of the sample. Put the sample plate or basket on the tray for sample placement. Above the furnace chamber there is fumes assembly chamber where the fume mixes with air before exhausted through the flue by the fan.

Features：

1.   Large-screen color LCD touch screen display, having bilingual display.

2.   Automatic temperature control, door lock state detector, door off automatically.

3.   With active smoke extraction system.

4.   Optional variety of imported or domestic balance and support internal calibration .

5.   The group has 30 independent combustion program storage unit

6. Can save up to 100 groups of test data, complete data includingtest results, including protocols and graphs, can view and print.

7.   The machine can be equipped with PC (USB 2.0), and set the test parameters, test data is saved through the PC software is complete, the report printing (including graphs)

8. With external HOST USB interface, allowing users to export test data through the USB port directly to the U disk, directly view and support EXCEL.

Technical Specifications:
