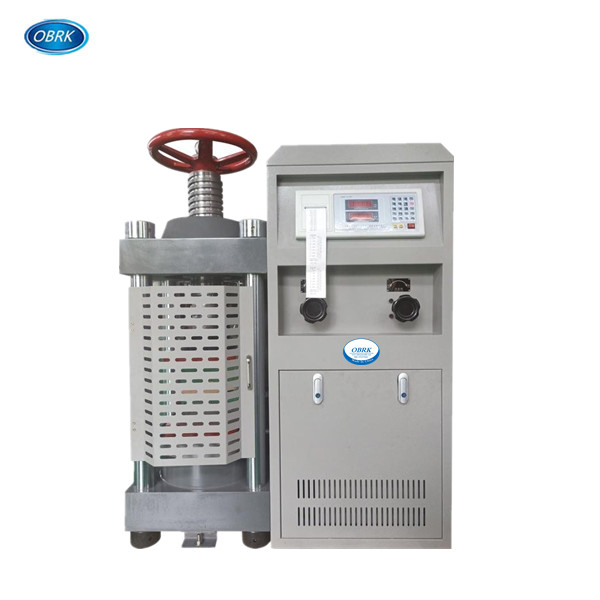

The pressure testing machine is mainly used to measure the compressive strength of building materials such as brick, stone and concrete.
Characteristic:
1. Electric and hydraulic load manually, sensor measure the force.
2. The screen display loading speed, breaking peak value, data storage, printing,inquiry and compression strength conversion.
Technical Specifications:
Model Number | OBRK- 2000 |
Maximum load | 2000KN |
Minimum resolution | 0.1KN |
Maximum distance between pressure plates | 320mm |
upper and lower pressure plates size | 220mm ,250mm |
Piston diameter x Max. stroke | Φ250mm, 30mm |
Motor power | 0.75KW |
Voltage | 220V,50Hz |
Overall Dimensions | 900x360x1300mm |
Net weight | 700Kg |
