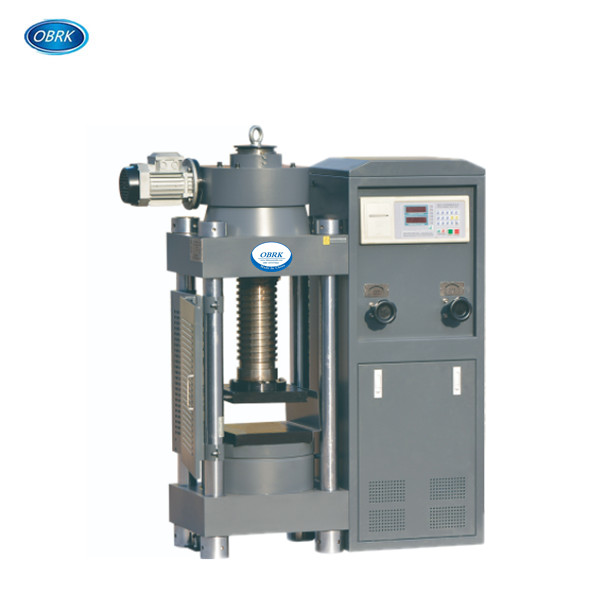

Compression testing machine is used for the compression test of concrete and other construction materials, manual load, adopt electric -screws to adjust the compression space, digital display the value of pressure and ratio of loading. It can save and print the test result directly by the controller. It also can be eqquipped with computer to show the load curve and process the date.
Technical Specifications:
Model Number | OBRK-2000D |
Features | Electric screw, Protect cover |
Max load capacity | 2000KN |
Compression space | 320mm |
Piston stroke | 50mm |
Size upper compression plates | 240×240mm |
Size lower compression plates | 300×250mm |
Dimension | 950×420×1350mm |
Power | 380V, 50Hz, 1.3kW |
Weight | 950KG |
