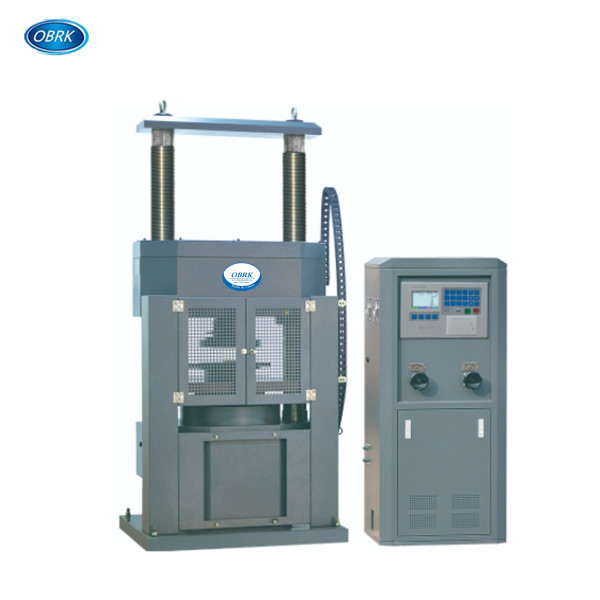

Manual loading, LCD display load, time and test curve
It is suitable for the compressive test of cement and concrete, and the split and pull test of concrete can be satisfied with the appropriate fixture and measuring device.
Technical Specifications:
Model Number | SYE-2000BD |
Max load capacity | 2000KN |
Engine structure | double lead screw electric regulation |
Compression space | 520mm |
Piston stroke | 200mm |
Platen size | Diameter 300mm |
Effective distance between column | 440mm |
Dimensions (body) | 840×640×1780 mm |
Dimensions (control cabinet) | 600×540×1370mm |
Power | 2.7KW |
Weight | 1700KG |
