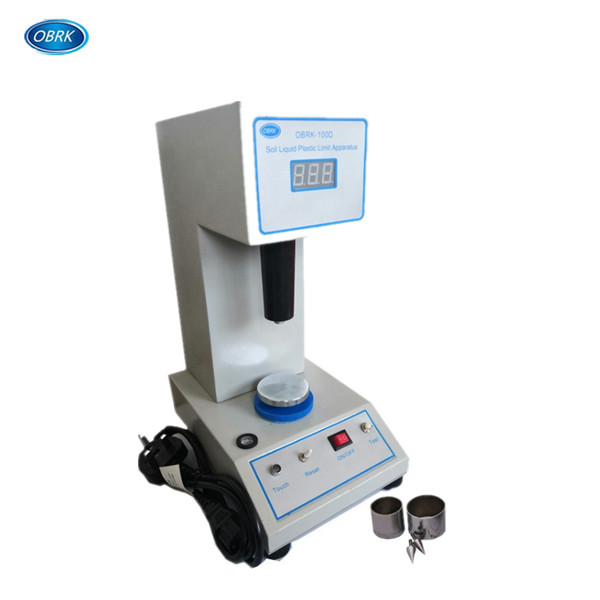

The liquid plastic limit united device adopts optical projection principle, penetration depth is optically amplified. Automatic electrom agnet conedrop; supplied together with cone damage inspecting apparatus. With high precision, easy to operate, no friction and automatically reading.
Technical Specifications:
Model NO. | OBRK-100D |
Cone angle | 30°±0.2° |
Cone's weight | 76g±0.2g , 100g±0.2g, |
Measure penetration depth of cone | 0-22mm |
Precision | 0.1mm |
Cone damage inspection | 0.3mm |
Electromagnet suction | > 100g |
Weight | 7.5KG |
Dimension | 300x230x440mm |
