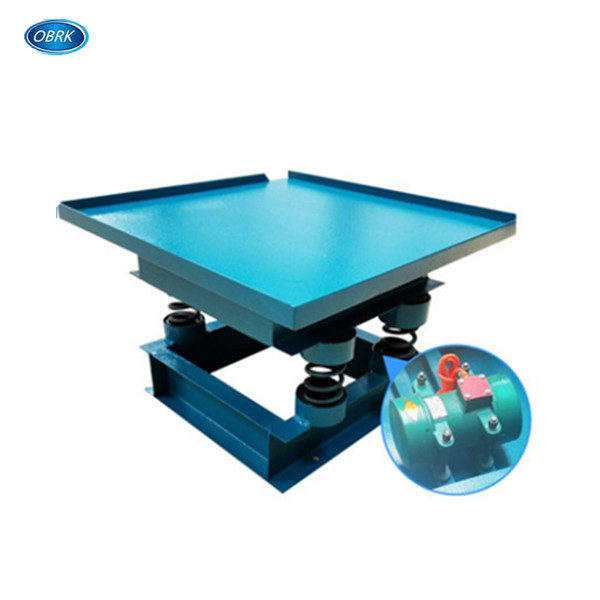

Vibrating Table for Concrete Moulds

Category :Concrete Test Apparatus
Name :
Tel :
Email :
Content :


Product Description:

It is used for molding of test sample of concrete and mortar in the testing laboratory. Electric vibration table is used to compact the concrete specimens by vibrating method in the laboratory, field test and so on. It has the advantages such as high production efficiency, good vibration efficiency and compaction performance, stable quality, cramped construction, low noise, easy to operate and convenient to maintain and repair.

STANDARD: EN 12350-6, -7, 12390-2, 13286-50, 1354

Technical Specifications:

Model

VB-50

VB-80

VB-100

Vibrating table size

500x500mm

800x800mm

1000x1000mm

Amplitude

0.3-0.6 mm

0.3-0.6 mm

0.3-0.6 mm

Vibrating frequency

2860Times/m

2860Times/m

2860Times/m

Power

0.55Kw

1.1KW

1.5KW

Voltage

220V/380V

220V/380V

220V/380V

Maximum load

100Kg

200Kg

200Kg
