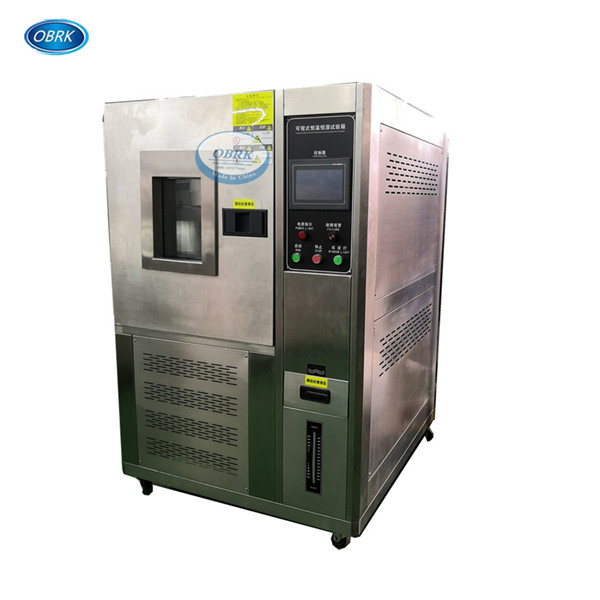

Stainless Steel Humidity Chamber

Category :Concrete Test Apparatus
Name :
Tel :
Email :
Content :

Product Description:

Usage:Used for curing of cement & other specimens that require consistent temperature and humidity control.


1. clear touch screen display panel provides user easly operation.

2. Constructed using full stainless steel material ensure long life span.

3.Fitted with transparent glass for easy viewing.

4.Various types of safety warnings to protect chamber from abnormal operation.

NOTES:we also can offer others capacity, and temperature  as A : -20℃ ~ +150 ℃

                                                                                                    B : -40℃ ~ +150 ℃

                                                                                                    C: -50℃ ~ +150 ℃

                                                                                                    D: -60℃ ~ +150 ℃

Technical Specifications:




150 Liter

Power Supply Source


Temperature Range

- 40°C ~ +150°C/±2°C

Humidity Range

20% ~ 98% RH (0.1 % resolution)/±5% RH

Inner and outsize material

304 stainless steel


Explosion-proof type USU#304 Stainless Steel fins radiator pipe heater

Insulation Material

50 mm high density rigid Polyurethane foam

Observation Window

Tempered Glass,size 300x275mm (LxW)

Testing Hole

Diameter 50mm, for cable routing

Safety Protection Device

Protection for leakage,over-temperatured,compressor overvoltage & overload, heater short circuit and water shortage

Internal Dimensions (LxWxH)

500x500x600 mm


1110x1230x1600 mm

N/G  Weight
