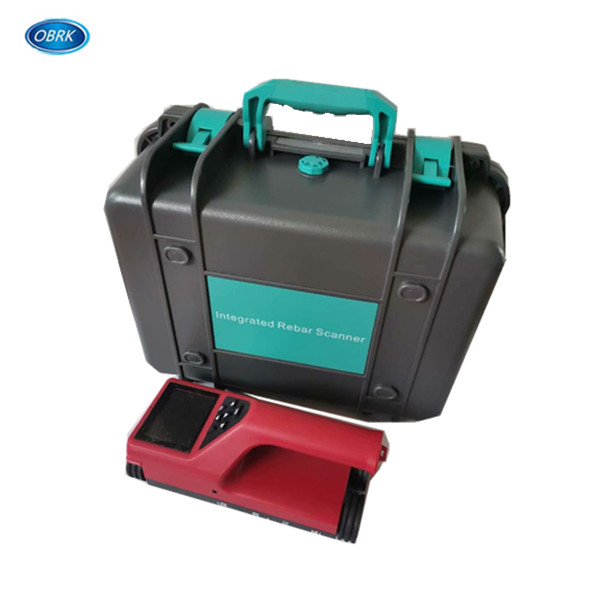

Integrated Rebar Scanner Concrete steel scanner

Category :Concrete Test Apparatus
Name :
Tel :
Email :
Content :

Product Description:

The instrument is a portable non-destructive testing instrument, which can be used for the detection of the construction quality of reinforced concrete structures. It can measure the position of the steel bars on the concrete surface, detect the thickness of the steel protective layer and the diameter of the steel bars. In addition, the magnetic properties inside the concrete structure can also be The position of the body and the conductor are detected, such as the internal cable of the wall, the plumbing pipe, etc., and the detection before construction can effectively avoid damage to these facilities during construction and reduce accidents.

Technical Specifications:



Rebar diameter setting range

Φ6mm ~ Φ50mm

Small range


Large range


Maximum thickness

of protective layer

±1    2-75mm

±2    76-100mm

±3    101-130mm

±4    131-200

Diameter estimation range


Diameter indication maximum error

±1 specification

Diameter display accuracy


Screen size

3.2 Inch

Working temperature


Working humidity


Power supply

Lithium battery
