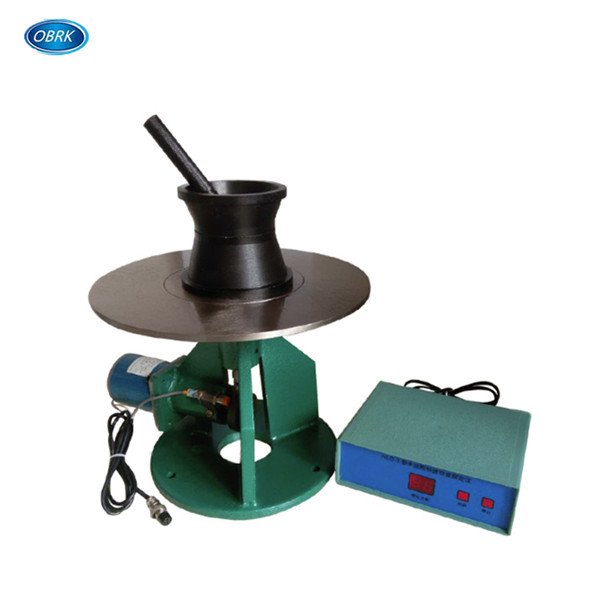

Used to determining the consistency of mortar & building line. Offering ASTM & EN standard, manual & motorized. A specimen contained in a cone mould is placed on a metal surface which is then raised & dropped from a known height after releasing the specimen from the mould.
Technical Specifications:
FT-E01 | FT-E02 | |
EN 459-2, EN 1015-3 | ASTM C230 | |
Operated Type | Motorized Operated | Motorized Operated |
Dimension (mm) | 380 (L) x 300 (W) x 245 (H) | 310 (L) x 255 (W) x 245 (H) |
Diameter of Table | 300 mm Cast Iron | 254 mm Cast Iron |
Weight of vibrating part | 4.2 to 4.5 kg | 4.08 kg |
Approx. Weight | 15KG | 15KG |
Power | 220V, 50Hz | 220V, 50Hz |
Dimension | 400×400×690 mm | 400×400×690 mm |
