STANDARD: ASTM D-5731

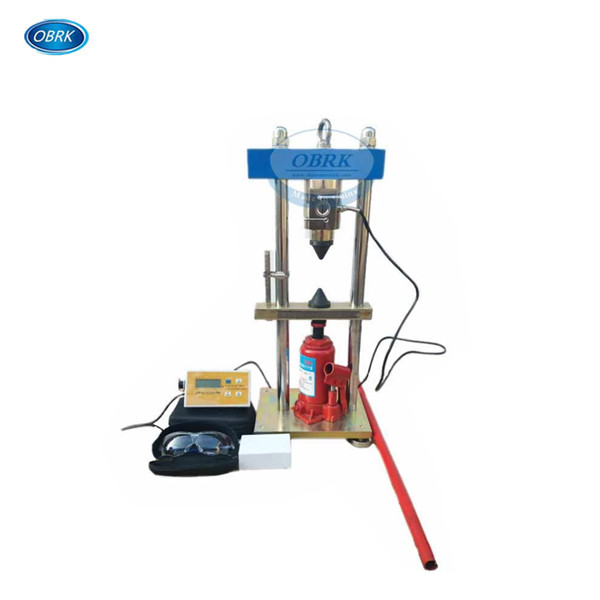

This apparatus comprises a two-column fixed crosshead frame and a hand operated hydraulic jack. Pressure applied by the jack extends the piston carrying the lower conical point. The upper point is fixed to the crosshead with a scale mounted on the frame to provide specimen diameter information for use in point load strength index calculations.
Technical Specifications:
DHY-05 | DHY-10 | |
50Mpa | 100Mpa | |
Force transducer range | 50KN | 100KN |
Piston diameter | 32mm | 36mm |
Accuracy | 0.001KN | 0.001KN |
Piston area | 9.62cm2 | 10.17cm2 |
Weight | 45Kg | 50Kg |
