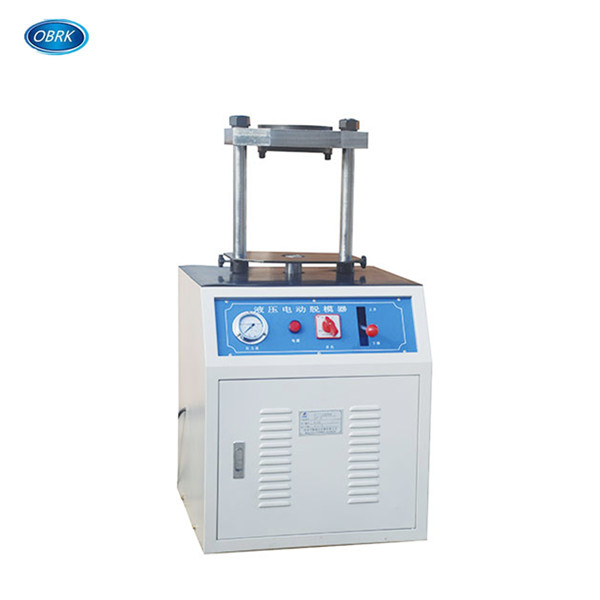

Hydraulic Electric Extruder

Category :Soil Test Apparatus
Name :
Tel :
Email :
Content :


Product Description:

The ejector is used for ejecting the specimen made of bituminous mix material and the material stabilized with inorganic binders etc. It can quickly eject the specimen from the mold and easy to operate.

Technical Specifications:

Model NO.

TLD-141

Soil specimen

Dia.102 x 116 mm, Dia.152 x 116mm

Bituminous mix material specimen

Dia. 101.6 x 87 mm

Material stability with inorganic binders

Dia.50x50mm, Dia.100x100mm,Dia.150x150mm

Maximum axial capacity

150KN

Maximum travel

250mm

Speed forward/ reverse

170mm/min

Voltage

220V/380V
