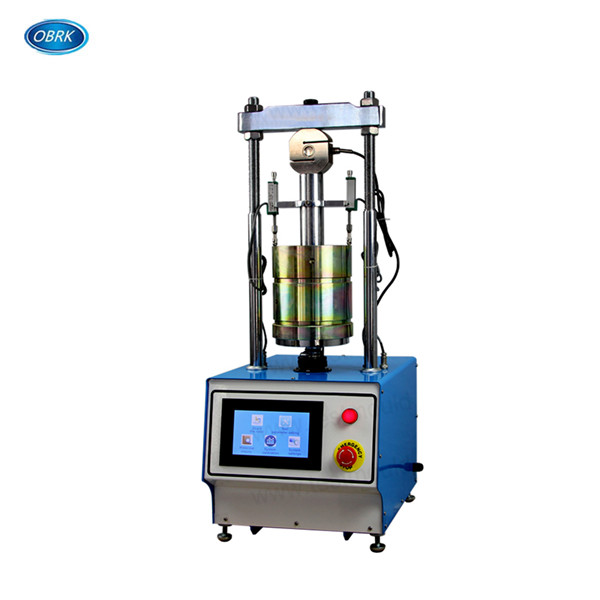

Updated CBR Loading Testing Machine With Sensor 50KN

Category :Soil Test Apparatus
Name :
Tel :
Email :
Content :


Product Description:

Bearing ratio (CBR) tester is used for carrying out bearing ratio tests on various soil and pavement base and underlying materials after making specimens in the specified test cylinder.The maximum particle size of the mixture should be controlled within 25mm and not more than 40mm.

Technical Specifications:

Model

CBR-A50

Standard

BS 1377-4,EN 13286-47,ASTM D 1883,AASHTO T 193

Capacity

50KN

Speed

1mm/min/1.27mm/min(can set)

Fast speed

15mm/min

Penetration bar

Diameter 50mm x100mm

Displacement sensor

0-25.00mm/0.001mm

Multi-orifice

2PCS

Loading plate

4PCS(OD 150mm,ID 52mm, weight 1.25KG/PC)

Cylinder mould

ID 152mm x170mm

Power

220V
