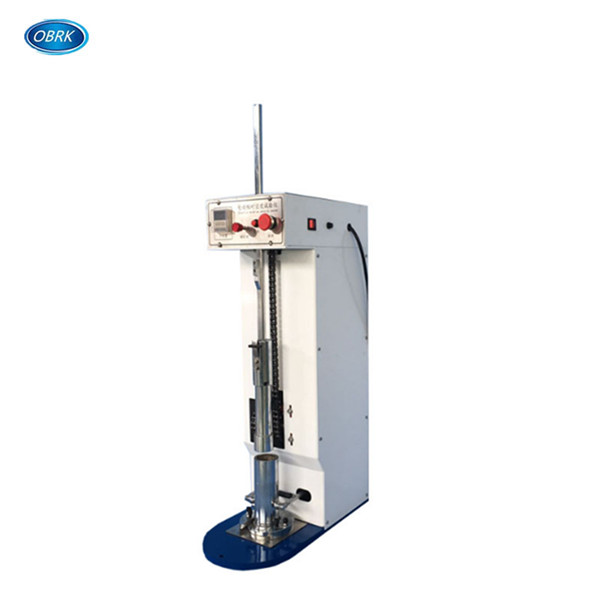

Electric Relative Density Testing Apparatus JDM-1

Category :Soil Test Apparatus
Name :
Tel :
Email :
Content :


Product Description:

The purpose of the test instrument is to calculate It is suitable for incohesive soil particle size < 5mm and samples with particle size of 2-5mm is not more than 15% of total samples to determine maximum density and minimum void ratio to calculate the relative density.

Technical Specifications:

Model NO.

JDM-1

Metal container

Dia. 50x Height 127mm

Compaction rammer

1.25 kg

Fall height of rammer

150 mm

Diameter of rammer

50mm

Compaction frequency

32TPM

Timing range

0-15 minutes

Power

220V,120W

Net weight

40KG

Dimension

500x300x940 mm
