concrete penetrometer Concrete Permeability Apparatus

Category :Concrete Test Apparatus
Name :
Tel :
Email :
Content :


Product Description:

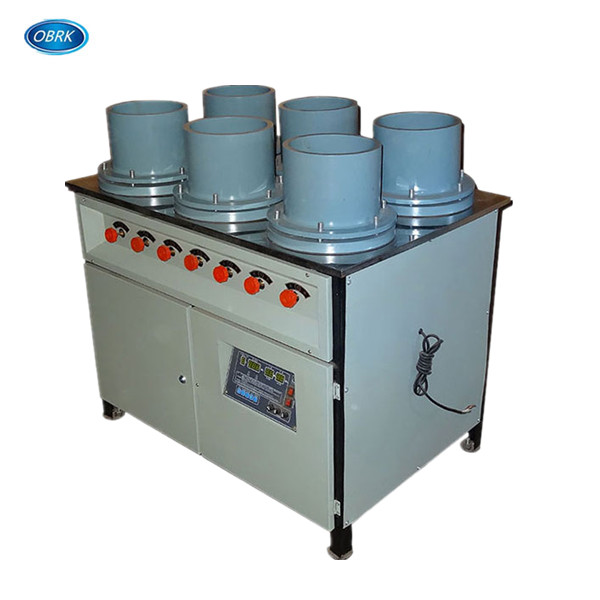

Concrete Water Permeability Apparatus is used to determine the depth of penetration of the water into the concrete (impermeability) under known time and pressure. the unit accepts concrete cubic, cylindrical or prismatic specimens having “max. dimensions” of 150x150x150 mm.The specimen is put into the test chamber, clamped with suitable flanges and round gaskets. A known water pressure is applied on the specimen’s surface for a known time. A manometer checks constantly the applied water pressure.

Technical Specifications:

Model

HP-40

Motor Power

90W

Power

220V/380V-50HZ

Working pressure

4Mpa/CM2

Number of specimen

6PCS

Geometry of the molding

175x185x165mm

Working methods

automatic pressurization

Dimensions

960X650X1000mm

Weight

220KG
