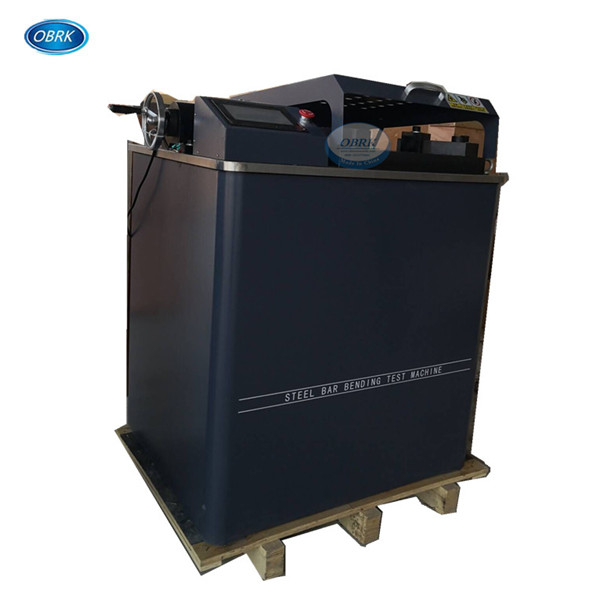

The steel bar bend testing machine can be used to do bend and reverse bend test on plane. It is an important equipment to test the recurvating character of screw thread steel bar in steel factory and architectural company. It can be used to bend the steel bar on-site so that test and construct can be done in one machine.
The testing machine has many advantages, such as small size, compact structure, easy operation, low noise, smooth and steady running, directly bend angle display and easy lubricating, especially reasonable design of limit position and easily damaged parts, so it has a long using time.
Standard:BS 4449 ISO 15630 ASTM A615
Technical Specifications:
GW-40 | |
Test Bar Diameter | 6mm--40mm |
Positive bending Angle | 0-180degree (Setting freely) |
0-180degree (Setting freely) | |
Working disk speed | ≤20°/S |
Power | 1.5KW |
voltage | voltage 380V,50Hz |
Weight | 1000KG |
Dimension | 1000x750x1200(mm) |
