Standard:ASTM D3910,EN 12274-4

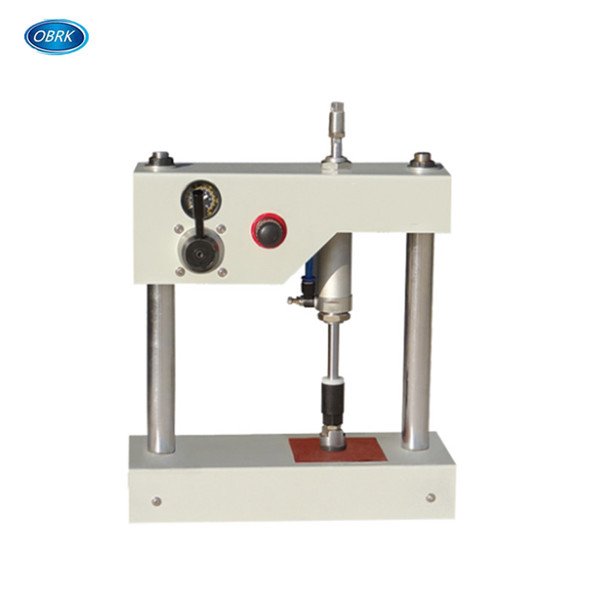

Usage:For determining the proper consistency (mix design) for a slurry seal mixture. Pneumatically operated, it consists of a double acting, double end-rod pneumatic cylinder fit in a frame, which houses the pressure gauge and valves. A hand torque tester is also supplied.
Technical parameters:
Name | Cohesion Tester |
Model | SYD-0754 |
Rubber pad diameter | 28.6mm |
Rubber pad thickness | 6.4mm |
Hardness of rubber pad | 60 |
Weight | 16KG |
Cylinder mould | Diameter 60x6mm Diameter 60x10mm |
Torque wrench | 0-5N/m |
Maximum pressure | 1Mpa |
Dimension | 420x270x560mm |
Voltage | 220V |
